PFLITSCH cable protection systems –
don’t leave safe processes to chance

The right protection from all kinds of influences

Reliable cable protection systems are indispensable in mechanical and plant engineering. Cables must be protected against mechanical, chemical or thermal influences, especially when they are routed to a machine or a control cabinet. As well as protecting the cable installation, which itself can represent a considerable investment, this is first and foremost a question of ensuring safe processes.

Maximum protection – minimum installation effort

Only by employing effective cable protection can production downtimes – and the associated commercial losses – be reliably avoided. PFLITSCH offers a cable protection system which, in addition to corrugated conduits, hoses and the corresponding corrugated conduit cable glands, also includes cable protection hoses with matching hose cable glands and hose glands, ensuring optimum protection and ease of assembly.

Catalogue Cable Gland – 12 Cable Protection
heute - 60: 2024-08-15
documentCreationDateTime: 2024-05-08
fileUploadDateTime: 2024-01-11

pdf

4.8 MB

EN

Download File

Advantages

The right solutions in metal and plastic for different requirements

Hoses and corrugated conduits with high flexibility and robustness

Type of protection up to IP 68 up to 10 bar

Wide temperature range from –55 °C to +200 °C

Versions with metric and Pg thread

Simple and quick assembly saves time and money

Corrugated conduit solutions and hose solutions

Corrugated conduits have a high mechanical load-bearing capacity, for example, as regards pressure resistance and tread resistance, as well as excellent weather resistance. In contrast, hoses – depending on the design – are ideal for applications requiring a high level of flexibility, fatigue and flexural fatigue strength or chemical resistance.

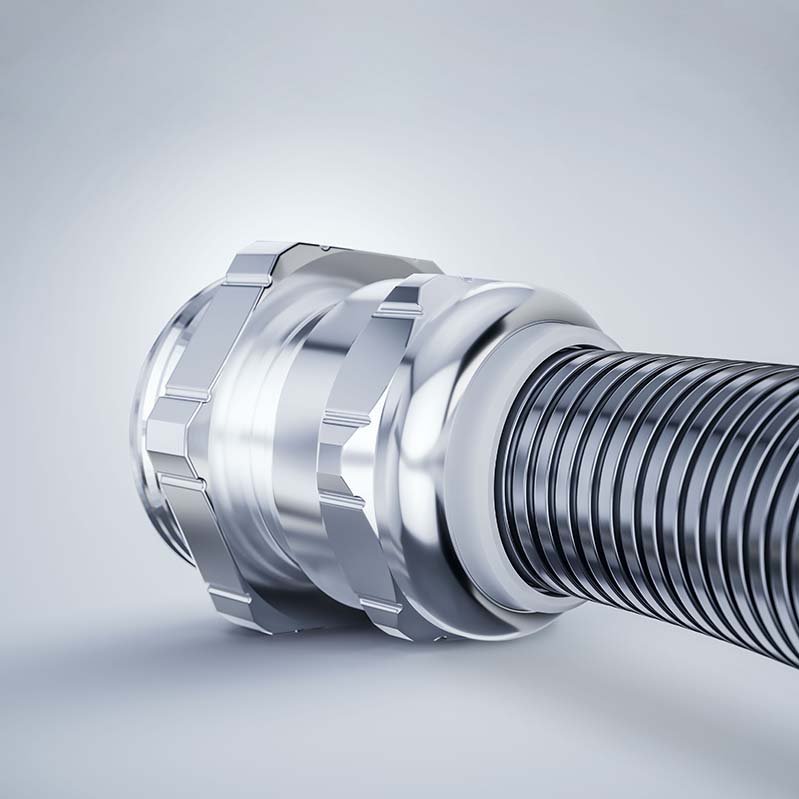

PFLITSCH UNI corrugated conduit cable gland fitted to a black corrugated conduit

Corrugated conduit solutions

Boasting mechanical load capacity, weather resistance, long-term stability and ease of installation, PFLITSCH corrugated conduit solutions convince in every respect.

Corrugated conduit solutions

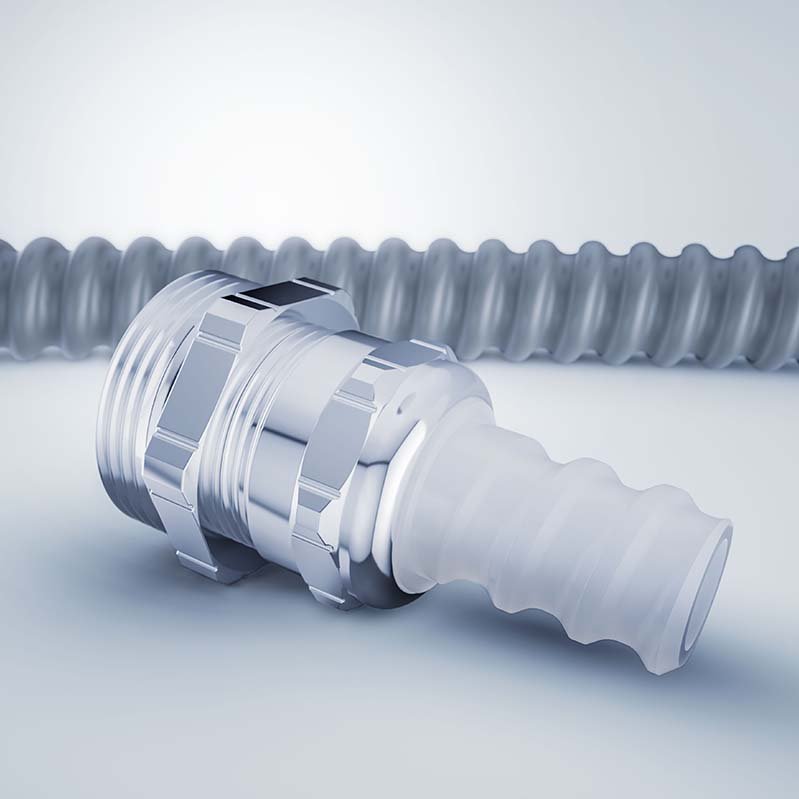

Hose solutions

We have the right hose solution for every typical industrial application, for example in mechanical engineering, robotics, the electrical industry, railways, etc.

Hose solutions

Further information

Cable gland

Have you already completed planning of your cable laying project and thought of the potential solutions for feeding in the cables? Our Cable Glands section offers you a source of valuable inspiration and makes choosing the right solutions as easy as can be – regardless of whether we’re talking high-quality, standard cable glands or sophisticated special solutions.

Cable gland

Cable trunking

You’re also interested in the multitude of possibilities offered by our cable trunking solutions? Or are you looking for a concrete solution to a specific cable laying project? The Cable Trunking section provides an overview of all of our models and highlights their specific advantages and benefits.
