PFLITSCH UNI flange – elbow cable gland

PFLITSCH’s elbows and flanges –
the perfect way to negotiate bends

Routed in the right direction

You can lay cables around bends up to 90° without any problem thanks to PFLITSCH’s coordinated range of elbows. This consists firstly of elbow cable glands with an angled body that can be turned through 360° and secondly of non-rotating flange elbows in various lengths, which enable you to feed cables out of a control cabinet or enclosure at an angle.

Maximum convenience

PFLITSCH elbow glands are first choice whenever cables need to be routed out of an enclosure at a very tight angle and then laid parallel to the enclosure wall. If those cables have to be brought out of a control cabinet or machine enclosure through an opening without a threaded hole and at the same time sealed reliably, we recommend PFLITSCH flange elbows. In this case, an O-ring seals the gap between the flange and the enclosure while a gland seals the cable at the point of exit.

[Translate to English:]
Catalogue Cable Gland – 11 Elbows + Flanges
heute - 60: 2024-08-15
documentCreationDateTime: 2024-05-08
fileUploadDateTime: 2024-01-11

pdf

1.9 MB

EN

Download File

Your advantages – convincing in every respect

Small mounting height ideal where space is limited

Very high strain relief

Excellent tightness of seal, with protection ratings up to IP 68

Maximum mechanical resilience and corrosion resistance

Elbow glands provide high temperature resistance up to 200 °C in the die-cast zinc version

Very easy to assemble

Design/properties

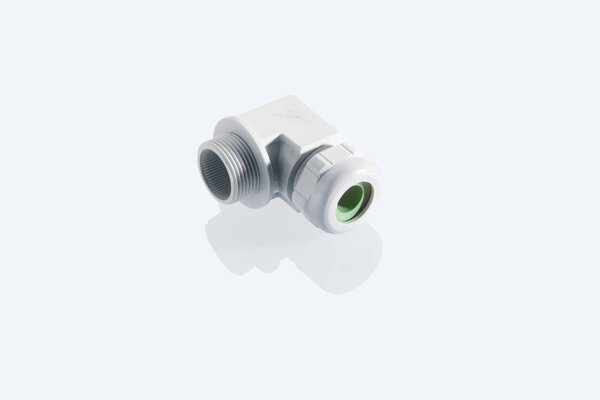

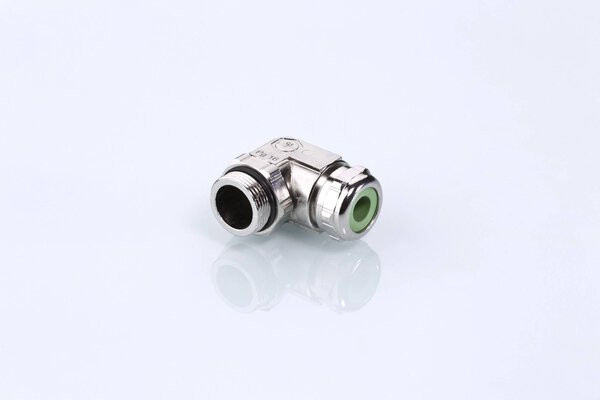

UNI elbow cable gland

This cable gland has a right-angled body and an O-ring to seal the gap to the enclosure. You can align it in different positions with the lock nut when it is assembled. All UNI elbow cable glands achieve roughly the same technical specifications as the standard UNI Dicht gland.

Material, gland body: Die-cast zinc or poycarbonate,
Material sealing inserts: TPE, TPE-V or silicone
Temperature range die-cast zinc: –40  C/+130 °C, –55 °C/+200 °C
Temperature range polycarbonate: –20 °C to +100 °C
Sizes: M16 to M25 and Pg 9 to Pg 21
Types of protection: IP 65 and IP 68/IP 68 up to 10 bar

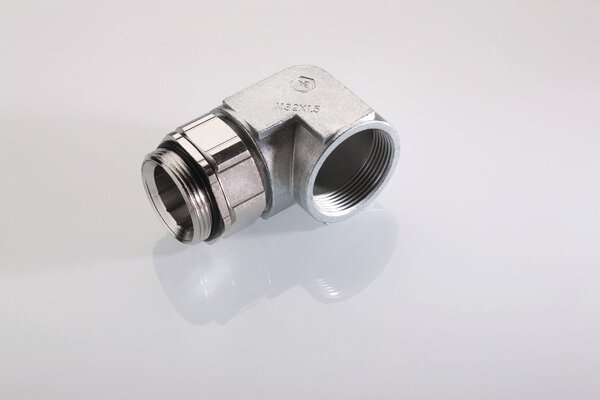

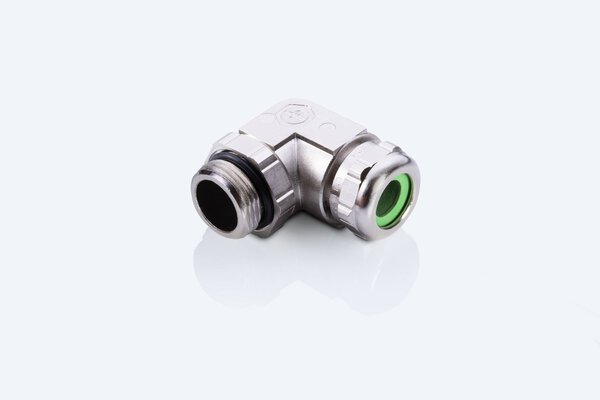

Elbow and elbow with coupling

The elbow has a thread for installation in a control cabinet or enclosure. It must be combined with a separate cable gland for use as a cable entry. Elbow models either with or without a coupling are available, in both cases made from die-cast zinc. The coupling enables them to be turned easily through 360° for optimal cable routing.

Material, gland body: Die-cast zinc
Size: M16 to M 32
Type of protection, elbow with coupling: IP 68 up to 10 bar
Type of protection, elbow: IP 65. When using elbows, please also note the type of protection of the required cable gland.

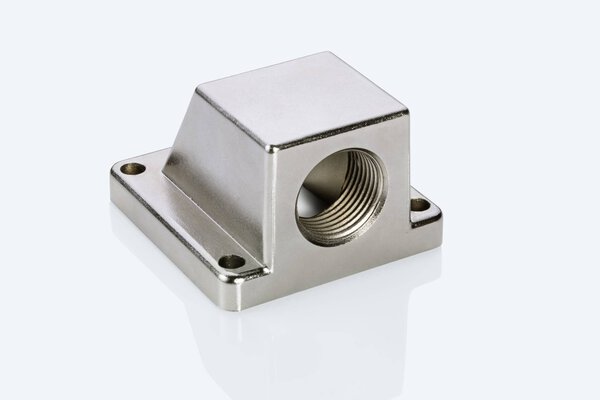

Flange elbow

If an enclosure or control cabinet does not have a threaded hole for a cable gland, you can nevertheless feed the cable into it at right angles thanks to our flange elbows in various lengths. In this case, the gland that seals the cable is screwed into the flange’s outlet thread. The flange elbow is then bolted to the enclosure or the control cabinet and sealed with an integral O-ring. Flange elbows are also suitable for use with large cable diameters.

Material: die-cast zinc or polycarbonate
Sizes: M16 to M63 and Pg 9 to Pg 48
Type of protection: IP 68 up to 10 bar. When using flange elbows, please also note the type of protection of the required cable gland.

Applications and tasks

Due to their special properties and benefits, PFLITSCH elbow cable glands and flange elbows are used in various branches of industry such as electric motor production, mechanical and plant engineering, equipment manufacturing or automation. PFLITSCH can also supply the stainless steel blueglobe CLEAN Plus hygienic elbow as an EHEDG-compliant solution for applications placing particularly high demands on hygiene.

FAQ

An elbow cable gland is a specific type of cable gland with an angled body through which a cable is fed into an enclosure or a control cabinet. The elbow cable gland is assembled in a threaded hole provided for this purpose. A flange elbow, on the other hand, is screwed to a simple opening that is unsuitable as a threaded hole and must be combined with a compatible cable gland in order to seal the cable. Both components are designed to allow cables to be brought out at right angles and laid parallel to the enclosure wall.

A cable gland with bending protection is mainly designed to protect the bent section of the cable from mechanical loads. It is not suitable for routing cables out of an enclosure at very tight 90° angles. An elbow cable gland or an elbow flange is required for this purpose.

When you assemble an elbow cable gland without a coupling, you can only align and tighten it in a particular position using a lock nut. This is much easier with a coupling because the gland can also be aligned after bolting.

Product portfolio elbows and flanges

Coupling

Brass, nickel-plated
Metric connection thread according to EN 60423
With o-ring made of HNBR
Type of protection IP 68 up to 10 bar

RoHS compliant
Coupling

Elbow metric

Zinc die casting
Metric connection thread according to EN 60423
With o-ring made of HNBR
Type of protection IP 65

RoHS compliant
Elbow metric

Flange elbow

Zinc die casting, short version
Metric connection thread according to EN 60423
With o-ring made of HNBR
Type of protection IP 68 up to 10 bar

RoHS compliant
Flange elbow
