PFLITSCH corrugated conduit solutions –
safe cable protection that pays off

Corrugated conduits are particularly robust in terms of mechanical loads and weather resistance. This is why they play a central role in cable protection. Our range of cable protection has two variants with two further powerful arguments relating to cost efficiency: long-term stability and ease of installation. Needless to say, we have cable glands tailored to the corrugated conduits that boast the typical characteristics of the UNI Dicht system.

Corrugated conduit cable glands

We have special corrugated cable glands coordinated with the PFLITSCH corrugated conduit solutions which feature the typical advantages of the UNI Dicht system such as excellent tightness and a high degree of strain relief. They not only provide a secure seal for the cables when they are fed into an enclosure or control cabinet, but also seal the cables against the corrugated conduit.

Corrugated conduits

In mechanical and plant engineering, automation, robotics and railway engineering, system components are sometimes subjected to extreme dynamic stresses. Two corrugated conduit models from PFLITSCH designed for particularly high tread resistance, weather resistance and long-term stability provide good protection for the cable installations.

Product variants

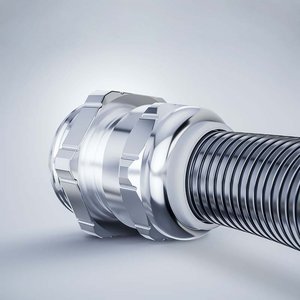

UNI Corrugated conduit cable gland, metric/Pg

Material: Brass, nickel-plated
Size: M16 to M40/Pg 9 to Pg 29
Type of protection: IP 68 up to 10 bar
Sealing insert: TPE, TPE-V, LSR
Temperature range: –40 °C/+110 °C

Corrugated conduit, light

Properties
High pressure and tread resistance
Excellent weather resistance

Industry usage and properties
Mechanical engineering: yes
Robotics: no
Electrical: yes
Rail: yes
Automotive: yes
Maritime: yes

Flexibility: 1/6
Fatigue/flexural fatigue strength: 1/6
Pressure/tread resistance: 5/6
Chem. resistance: 3/6
Weather resistance: 6/6

Corrugated conduit, medium

Properties
Above-average pressure and tread resistance
Excellent weather resistance

Industry usage and properties
Mechanical engineering: yes
Robotics: no
Electrical: yes
Rail: yes
Automotive: yes
Maritime: yes

Flexibility: 1/6
Fatigue/flexural fatigue strength: 1/6
Pressure/tread resistance: 6/6
Chem. resistance: 3/6
Weather resistance: 6/6
