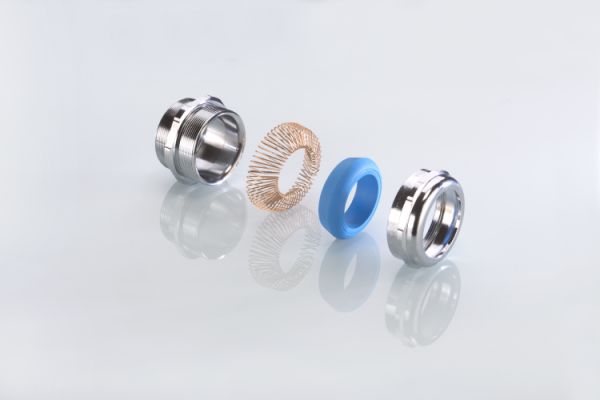

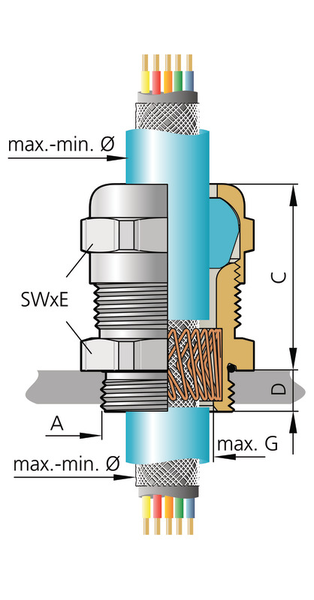

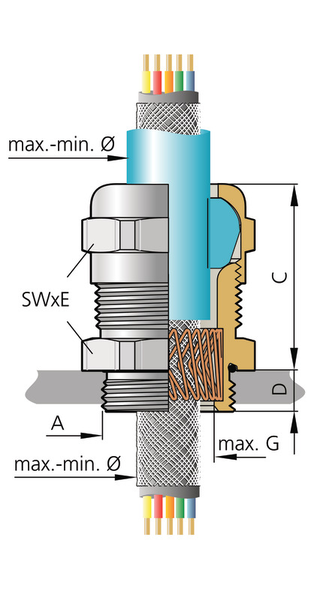

blueglobe TRI NM/Cr, marine thread

Brass, chrome-plated, spring made of bronze (non-magnetic)
Metric connection thread according to DIN 89280 (marine) / EN 60423
With o-ring made of HNBR / Type of protection IP 68 up to 15 bar, IP 69
Strain relief up to class B, EN 62444
Certified according to VG 88846-4 and -5

CE compliant RoHS compliant
  • bg 25652ms triNM/Cr 15lg
  • bg 21822ms triNM/Sc/Cr 10lg
  • bg 216ms 7triNM/Sc/Cr 9lg
  • bg 22428ms triNM/Sc/Cr 11lg
  • bg 24542ms27 triNM/Cr 14lg
  • bg 23642ms27 triNM/Cr 13lg
  • bg 23034ms24 triNM/Cr 12lg
  • bg 27265ms triNM/Cr 16lg
