PFLITSCH Hygienic Design solutions –
a comprehensive portfolio for safe processes

Hygiene is increasingly being seen as an absolute top priority in the food and pharmaceutical industries. This explains why the manufacturing process and production facilities are the subject of ever greater demands in this regard. As a pioneer in the field of Hygienic Design, we pursue a holistic approach. The result is a smart system of coordinated cable entry, cable routing and cable protection solutions that meets the standards laid down for hygienic production plants. This system enables you to meet the future challenges in respect of hygiene and comply with the highest standards.

What is Hygienic Design?

In a word, Hygienic Design describes the easy-to-clean design of parts, components and production facilities. In hygiene-critical production environments, the prevention of microbial and particulate contamination of products is a key requirement. Geometric equipment design and the choice of suitable materials have a decisive influence on the suitability for clean production.

Competence brochure Hygienic Design
heute - 60: 2026-07-12
documentCreationDateTime: 2024-05-08
fileUploadDateTime: 2023-04-25

pdf

3.1 MB

EN

Download File
Order as Print

The advantages of our Hygienic Design solutions

Comprehensive solutions for seamless safety across all production areas

Our pioneering solutions enable you to meet tomorrow’s requirements today

Easy assembly, simple time- and cost-saving installation

Meet the highest requirements for tightness, strain relief and durability

Fit harmoniously and seamlessly into typical food or pharmaceutical production environments

Thanks to our proven development expertise, we can also create customised solutions for you

The right solutions for every product zone

Food production plants have different zones with different hygiene requirements. In general, the closer the contact system components have with the food products, the higher the hygiene requirements.

PFLITSCH offers a portfolio of solutions that are precisely tailored to the specific requirements.

Product contact zone

In this zone, food can come into contact with parts of the plant and then return to the manufacturing process. For this reason, the hygiene requirements are particularly high here and the components installed must not aid the formation of potential dirt traps. It is precisely such zones that led PFLITSCH to design its product solutions in accordance with the Hygienic Design guidelines of the EHEDG.
The use of high-quality materials that are resistant to cleaning agents plays an important role, as does an adapted design without corners and edges that facilitates cleaning.

Splash zone

In the splash zone, food may come into contact with system components and accumulate there. Easy, hygienic cleanability of the system is therefore essential.
To prevent food sticking, the components must be protected or have smooth surfaces to enable residue-free cleaning of the production sections concerned so that no bacteria nests can form here either.

Product-free zone

Away from the actual food processing, the requirements in this area are comparable to those in a standard industrial environment.
As the food in this area is already packaged, there is no risk of contamination. However, depending on the application, it can still be advisable to use Hygienic Design products from PFLITSCH here.

Our products in food production

1 2 3 4 5 6 7 8 9 10 11

1. Z-shaped Wire-tray Trunking

The Z-shape of our easy-to-clean Wire-tray Trunking prevents cables from falling out when run vertically.

2. Corrugated conduit

For reliable cable protection with high mechanical resistance and outstanding flexibility.

3. CLEAN Pipe adapter

Establishes the connection between the rigid CLEAN pipe and the flexible corrugated conduit.

4. CLEAN Pipe

The rigid, closed and hygienic solution for reliable routing of a small number of cables.

5. blueglobe CLEAN Plus Polyamide

The cable gland for use in demanding hygienic environments, with an attractive cost-benefit ratio

6. CLEAN Plus blind plug

For hygienic sealing of unused holes in machines and control cabinets.

7. Wire-tray Trunking cover

To protect the cables from mechanical influences and from dripping liquids.

8. Wire-tray Trunking

The solution for open and hygienic cable laying that allows permanent access to the cables.

9. blueglobe CLEAN Plus Ex e

For use in environments that place the highest demands on hygiene and explosion protection.

10. Cleanplus/Cleanplus TRI

The solution for applications where maximum hygiene safety and optional additional EMC protection are essential.

11. CABseal clean

The splittable cable entry and transit for the quick and flexible insertion of pre-assembled cables in hygienic production areas.

Comprehensive product range

As an innovation driver in the field of Hygienic Design, we pursue a holistic approach. The result is a comprehensive system comprising coordinated solutions for cable entry, cable routing and cable protection. The components can be combined as required and are designed to meet the demands of hygiene-critical applications

PFLITSCH blueglobe CLEAN Plus cable gland fitted to a cable

Hygienic cable glands

Cable glands used in the food industry must meet both basic and highly specific requirements. We have developed our own product ranges based on the tried-and-tested blueglobe cable gland for demanding hygiene applications in the food industry: blueglobe CLEAN Plus and Cleanplus. These combine the well-known strengths of PFLITSCH cable glands with a design tailored to use in the food industry.

Hygienic design cable gland

CABseal clean

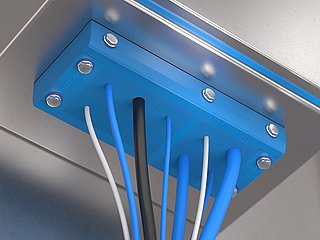

For hygiene-critical areas in the food industry, PFLITSCH offers the CABseal clean, a splittable cable entry and transit for pre-assembled and non-pre-assembled cables and wires. The hygienic design facilitates easy-to-clean installation and simplifies the safe insertion of cables with connectors. The frame, made from 1.4404 (AISI 316L) stainless steel, FDA-compliant materials and special hygienic screws, is designed to meet the requirements of demanding hygiene applications.

CABseal clean

Wire-tray Trunking

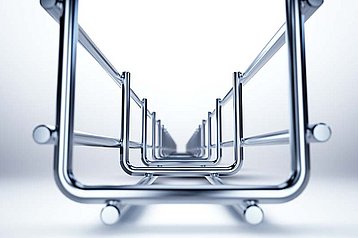

Cable routing in the food industry also poses special challenges. The entire cable routing systems are considered with regard to the strict hygiene regulations in the food industry. A key aspect is cleanability. Our open Wire-tray Trunking system, optimised according to Hygienic Design principles, is the perfect solution for clear cable routing, offering variability, durability and great stability. The construction, made from stainless steel wires, allows for flexible routing tailored to the specific plant layout.

Wire-tray Trunking

PFLITSCH UNI corrugated conduit cable gland fitted to a black corrugated conduit

Cable protection

In the food industry, cables are exposed to mechanical stress, temperature fluctuations, chemicals and cleaning agents. We offer a perfectly coordinated cable protection range of hose solutions and cable glands to support smooth production processes. Different pressure hoses and a sheathed corrugated conduit are available that are tailored to the application in question. They are temperature-resistant, easy to clean and compatible with the blueglobe CLEAN Plus and Cleanplus cable gland.

Cable protection

Hygiene safety with EMC protection: the Cleanplus TRI

PFLITSCH Cleanplus TRI cable gland in exploded view

With the Cleanplus TRI, PFLITSCH offers a unique solution for applications in which, in addition to the highest level of hygiene safety, absolutely reliable EMC protection is essential. This is ensured by the proven and patented TRI spring, which is already successfully used in the blueglobe TRI and UNI Dicht TRI models. The Cleanplus TRI enables full-surface shield contacting (method) with outstanding shield attenuation values and offers certified hygiene safety in accordance with the hygienic design guidelines of the EHEDG.

The Wire-tray Trunking in practical application: Rothaus brewery

PFLITSCH cable trunking routing at a Rothaus beverage bottling plant

The Badische Staatsbrauerei Rothaus AG, producer of the well-known Tannenzäpfle beer, needed to route cables for a new bottling plant. The requirements: hygienic, safe and clear cable routing. The brewery ultimately opted for Wire-tray Trunking from PFLITSCH, not least because of its stability and corrosion resistance. But the customer was also convinced by the installation enabling an individual cable layout. For maximum hygiene, in some process areas parts of the Wire-tray Trunking were even welded with the covers. The Rothaus brewery has relied on our Wire-tray Trunking for 10 years already and has even obligated its suppliers to install it.

Download the customer case study

Tested safety for cleanroom applications

The Fraunhofer cleanroom listing provides users with reliable guidance when selecting suitable products for controlled and particularly sensitive production environments. CABseal clean is now officially listed in the Fraunhofer database: The cable entries and transits have been tested for particle emission in accordance with ISO 14644-1 and ISO 14644-14 and have achieved ISO Class 1 air cleanliness. CABseal clean thus provides a certified basis for the safe and reliable routing of cables through cleanroom walls – particularly where the highest standards of cleanliness and process reliability apply.

Certifications – safety signed, sealed, delivered

blueglobe CLEAN Plus with foam residues after cleaning

We set high standards for our solutions. Take the blueglobe CLEAN Plus, which was the world’s first cable gland to be developed according to Hygienic Design principles and certified by the EHEDG (European Hygienic Engineering & Design Group). Its successor, the Cleanplus, has also been certified in accordance with the EHEDG’s principles, albeit in accordance with the new, stricter requirements. Like many other products in our range, it too is FDA-compliant and has proven its outstanding hygienic design in numerous tests. For example, its resistance to cleaning agents and disinfectants has been successfully tested by the Ecolab laboratory.

Award-winning
blueglobe CLEAN Plus PA

PFLITSCH products are characterised by a high level of innovation and sophisticated features and this has been confirmed by the renowned Fraunhofer Institute. The blueglobe CLEAN Plus cable gland made of polyamide won 3rd place in the REINER! 2021 clean manufacturing award. As the first all-plastic Hygienic Design cable gland to receive EHEDG certification, it meets the strict hygienic and cleaning requirements of the food and pharmaceutical industries.
